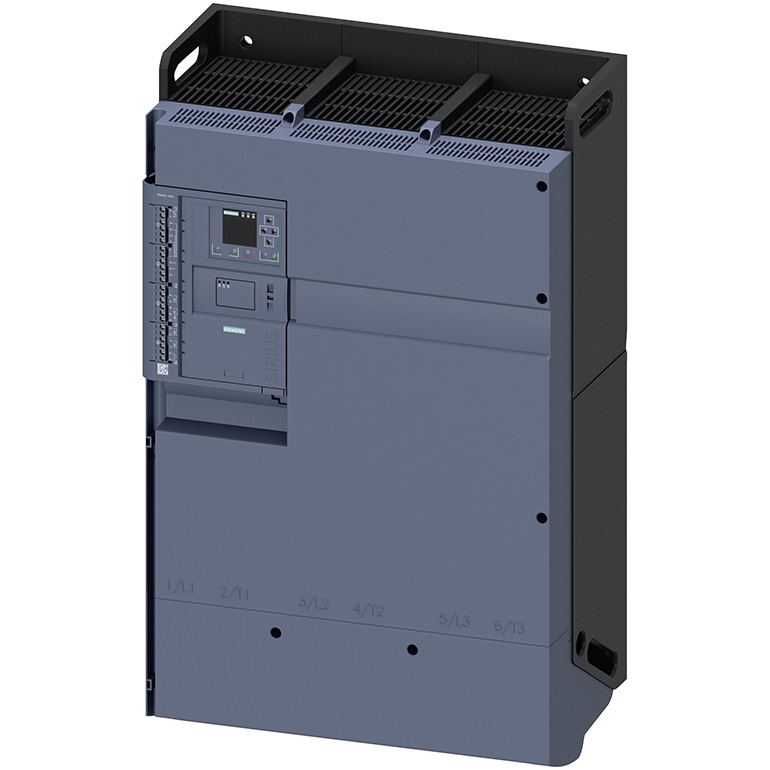

3RW5553-6HA06 thuộc loại khởi động mềm hiệu suất cao (high performance soft starter) được hãng Siemens sản xuất và phát triển với thương hiệu SIRIUS thuộc dòng 3RW55.
Xem nhanh...
Bảng tóm tắt thông số kỹ thuật 3RW5553-6HA06
| Mã sản phẩm | 3RW5553-6HA06 |
| Dòng sản phẩm | SIRIUS 3RW55 |
| Hãng sản xuất | Siemens |
| Xuất xứ | Czech Republic (Séc) / CZ |
| Điện áp định mức | 200-690 V |
| Dòng điện định mức tại 40 °C | 720 A |
| Điện áp điều khiển | 24 V AC/DC |
| Công suất động cơ tại 400 V ở 40 °C | 400 kW |
| Kích thước | 764 x 478 x 241 mm |
| Trọng lượng | 45000 g |
Bảng chi tiết thông số kỹ thuật 3RW5553-6HA06
| product brand name | SIRIUS |
| product category | Hybrid switching devices |
| product designation | Soft starter |
| product type designation | 3RW55 |
| manufacturer’s article number | |
| ● of high feature HMI module usable | 3RW5980-0HF00 |
| ● of communication module PROFINET standard usable | 3RW5980-0CS00 |
| ● of communication module PROFINET high-feature usable | 3RW5950-0CH00 |
| ● of communication module PROFIBUS usable | 3RW5980-0CP00 |
| ● of communication module Modbus TCP usable | 3RW5980-0CT00 |
| ● of communication module Modbus RTU usable | 3RW5980-0CR00 |
| ● of communication module Ethernet/IP | 3RW5980-0CE00 |
| ● of circuit breaker usable at 400 V | 3VA2510-6HN32-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| ● of circuit breaker usable at 500 V | 3VA2510-6HN32-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| ● of circuit breaker usable at 400 V at inside-delta circuit | 3VA2716-7AB05-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| ● of circuit breaker usable at 500 V at inside-delta circuit | 3VA2716-7AB05-0AA0; Type of coordination 1, Iq = 65 kA, CLASS 10 |
| ● of the gG fuse usable up to 690 V | 2x3NA3365-6; Type of coordination 1, Iq = 65 kA |
| ● of full range R fuse link for semiconductor protection usable up to 690 V | 3NB3351-1KK26; Type of coordination 2, Iq = 65 kA |
| ● of back-up R fuse link for semiconductor protection usable up to 690 V | 3NC3343-1U; Type of coordination 2, Iq = 65 kA |
| General technical data | |
| starting voltage [%] | 20 … 100 % |
| stopping voltage [%] | 50 … 50 % |
| start-up ramp time of soft starter | 0 … 360 s |
| ramp-down time of soft starter | 0 … 360 s |
| start torque [%] | 10 … 100 % |
| stopping torque [%] | 10 … 100 % |
| torque limitation [%] | 20 … 200 % |
| current limiting value [%] adjustable | 125 … 800 % |
| breakaway voltage [%] adjustable | 40 … 100 % |
| breakaway time adjustable | 0 … 2 s |
| number of parameter sets | 3 |
| accuracy class acc. to IEC 61557-12 | 5 % |
| certificate of suitability | |
| ● CE marking | Yes |
| ● UL approval | Yes |
| ● CSA approval | Yes |
| product component | |
| ● HMI-High Feature | Yes |
| ● is supported HMI-High Feature | Yes |
| product feature integrated bypass contact system | Yes |
| number of controlled phases | 3 |
| trip class | CLASS 10A / 10E (default) / 20E / 30E; acc. to IEC 60947-4-2 |
| current unbalance limiting value [%] | 10 … 60 % |
| ground-fault monitoring limiting value [%] | 10 … 95 % |
| buffering time in the event of power failure | |
| ● for main current circuit | 100 ms |
| ● for control circuit | 100 ms |
| idle time adjustable | 0 … 255 s |
| insulation voltage rated value | 690 V |
| degree of pollution | 3, acc. to IEC 60947-4-2 |
| impulse voltage rated value | 8 kV |
| blocking voltage of the thyristor maximum | 1 800 V |
| service factor | 1.15 |
| surge voltage resistance rated value | 8 kV |
| maximum permissible voltage for safe isolation | |
| ● between main and auxiliary circuit | 690 V; does not apply for thermistor connection |
| shock resistance | 15 g / 11 ms, from 6 g / 11 ms with potential contact lifting |
| vibration resistance | 15 mm up to 6 Hz; 2 g up to 500 Hz |
| recovery time after overload trip adjustable | 60 … 1 800 s |
| utilization category acc. to IEC 60947-4-2 | AC 53a |
| reference code acc. to IEC 81346-2 | Q |
| Substance Prohibitance (Date) | 11.02.2019 |
| product function | |
| ● ramp-up (soft starting) | Yes |
| ● ramp-down (soft stop) | Yes |
| ● breakaway pulse | Yes |
| ● adjustable current limitation | Yes |
| ● creep speed in both directions of rotation | Yes |
| ● pump ramp down | Yes |
| ● DC braking | Yes |
| ● motor heating | Yes |
| ● slave pointer function | Yes |
| ● trace function | Yes |
| ● intrinsic device protection | Yes |
| ● motor overload protection | Yes; Full motor protection (thermistor motor protection and electronic motor overload protection) |
| ● evaluation of thermistor motor protection | Yes; Type A PTC or Klixon / Thermoclick |
| ● inside-delta circuit | Yes; Only up to 600 V operating voltage |
| ● auto-RESET | Yes |
| ● manual RESET | Yes |
| ● remote reset | Yes |
| ● communication function | Yes |
| ● operating measured value display | Yes |
| ● event list | Yes |
| ● error logbook | Yes |
| ● via software parameterizable | Yes |
| ● via software configurable | Yes |
| ● screw terminal | Yes |
| ● spring-type terminal | No |
| ● PROFIenergy | Yes; in connection with the PROFINET Standard and PROFINET High-Feature communication modules |
| ● firmware update | Yes |
| ● removable terminal for control circuit | Yes |
| ● voltage ramp | Yes |
| ● torque control | Yes |
| ● combined braking | Yes |
| ● analog output | Yes; 4 … 20 mA (default) / 0 … 10 V |
| ● programmable control inputs/outputs | Yes |
| ● condition monitoring | Yes |
| ● automatic parameterisation | Yes |
| ● application wizards | Yes |
| ● alternative run-down | Yes |
| ● emergency operation mode | Yes |
| ● reversing operation | Yes |
| ● soft starting at heavy starting conditions | Yes |
| Power Electronics | |
| operational current | |
| ● at 40 °C rated value | 720 A |
| ● at 40 °C rated value minimum | 144 A |
| ● at 50 °C rated value | 641 A |
| ● at 60 °C rated value | 580 A |
| operational current at inside-delta circuit | |
| ● at 40 °C rated value | 1 247 A |
| ● at 50 °C rated value | 1 110 A |
| ● at 60 °C rated value | 1 005 A |
| operating voltage | |
| ● rated value | 200 … 690 V |
| ● at inside-delta circuit rated value | 200 … 600 V |
| relative negative tolerance of the operating voltage | -15 % |
| relative positive tolerance of the operating voltage | 10 % |
| relative negative tolerance of the operating voltage at inside-delta circuit | -15 % |
| relative positive tolerance of the operating voltage at inside-delta circuit | 10 % |
| operating power for 3-phase motors | |
| ● at 230 V at 40 °C rated value | 200 kW |
| ● at 230 V at inside-delta circuit at 40 °C rated value | 400 kW |
| ● at 400 V at 40 °C rated value | 400 kW |
| ● at 400 V at inside-delta circuit at 40 °C rated value | 710 kW |
| ● at 500 V at 40 °C rated value | 500 kW |
| ● at 500 V at inside-delta circuit at 40 °C rated value | 800 kW |
| ● at 690 V at 40 °C rated value | 710 kW |
| Operating frequency 1 rated value | 50 Hz |
| Operating frequency 2 rated value | 60 Hz |
| relative negative tolerance of the operating frequency | -10 % |
| relative positive tolerance of the operating frequency | 10 % |
| minimum load [%] | 10 %; Relative to set Ie |
| power loss [W] for rated value of the current at AC | |
| ● at 40 °C after startup | 216 W |
| ● at 50 °C after startup | 170 W |
| ● at 60 °C after startup | 139 W |
| power loss [W] at AC at current limitation 350 % | |
| ● at 40 °C during startup | 11 534 W |
| ● at 50 °C during startup | 9 773 W |
| ● at 60 °C during startup | 8 497 W |
| type of the motor protection | Electronic, tripping in the event of thermal overload of the motor |
| Control circuit/ Control | |
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC | |
| ● at 50 Hz rated value | 24 V |
| ● at 60 Hz rated value | 24 V |
| relative negative tolerance of the control supply voltage at AC at 50 Hz | -20 % |
| relative positive tolerance of the control supply voltage at AC at 50 Hz | 20 % |
| relative negative tolerance of the control supply voltage at AC at 60 Hz | -20 % |
| relative positive tolerance of the control supply voltage at AC at 60 Hz | 20 % |
| control supply voltage frequency | 50 … 60 Hz |
| relative negative tolerance of the control supply voltage frequency | -10 % |
| relative positive tolerance of the control supply voltage frequency | 10 % |
| control supply voltage | |
| ● at DC rated value | 24 V |
| relative negative tolerance of the control supply voltage at DC | -20 % |
| relative positive tolerance of the control supply voltage at DC | 20 % |
| control supply current in standby mode rated value | 440 mA |
| holding current in bypass operation rated value | 1 100 mA |
| locked-rotor current at close of bypass contact maximum | 6.7 A |
| inrush current peak at application of control supply voltage maximum | 7.5 A |
| duration of inrush current peak at application of control supply voltage | 20 ms |
| design of the overvoltage protection | Varistor |
| design of short-circuit protection for control circuit | 4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply |
| Inputs/ Outputs | |
| number of digital inputs | 4 |
| ● parameterizable | 4 |
| ● number of digital outputs | 4 |
| ● number of digital outputs parameterizable | 3 |
| ● number of digital outputs not parameterizable | 1 |
| digital output version | 3 normally-open contacts (NO) / 1 changeover contact (CO) |
| number of analog outputs | 1 |
| switching capacity current of the relay outputs | |
| ● at AC-15 at 250 V rated value | 3 A |
| ● at DC-13 at 24 V rated value | 1 A |
| Installation/ mounting/ dimensions | |
| mounting position | Vertical (can be rotated +/- 90° and tilted forward or backward +/- 22.5°) |
| fastening method | screw fixing |
| height | 764 mm |
| width | 478 mm |
| depth | 241 mm |
| required spacing with side-by-side mounting | |
| ● forwards | 10 mm |
| ● backwards | 0 mm |
| ● upwards | 100 mm |
| ● downwards | 75 mm |
| ● at the side | 5 mm |
| weight without packaging | 45 kg |
| Connections/ Terminals | |
| type of electrical connection | |
| ● for main current circuit | busbar connection |
| ● for control circuit | screw-type terminals |
| width of connection bar maximum | 55 mm |
| wire length for thermistor connection | |
| ● with conductor cross-section = 0.5 mm² maximum | 50 m |
| ● with conductor cross-section = 1.5 mm² maximum | 150 m |
| ● with conductor cross-section = 2.5 mm² maximum | 250 m |
| type of connectable conductor cross-sections | |
| ● for DIN cable lug for main contacts stranded | 2x (50 … 240 mm²) |
| ● for DIN cable lug for main contacts finely stranded | 2x (70 … 240 mm²) |
| type of connectable conductor cross-sections | |
| ● for control circuit solid | 1x (0.5 … 4.0 mm²), 2x (0.5 … 2.5 mm²) |
| ● for control circuit finely stranded with core end processing | 1x (0.5 … 2.5 mm²), 2x (0.5 … 1.5 mm²) |
| ● at AWG cables for control circuit solid | 1x (20 … 12), 2x (20 … 14) |
| wire length | |
| ● between soft starter and motor maximum | 800 m |
| ● at the digital inputs at DC maximum | 1 000 m |
| tightening torque | |
| ● for main contacts with screw-type terminals | 20 … 35 N·m |
| ● for auxiliary and control contacts with screw-type terminals | 0.8 … 1.2 N·m |
| tightening torque [lbf·in] | |
| ● for main contacts with screw-type terminals | 177 … 310 lbf·in |
| ● for auxiliary and control contacts with screw-type terminals | 7 … 10.3 lbf·in |
| Ambient conditions | |
| installation altitude at height above sea level maximum | 2 000 m; Derating as of 1000 m, see catalog |
| ambient temperature | |
| ● during operation | -25 … +60 °C; Please observe derating at temperatures of 40 °C or above |
| ● during storage and transport | -40 … +80 °C |
| environmental category | |
| ● during operation acc. to IEC 60721 | 3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 |
| ● during storage acc. to IEC 60721 | 1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4 |
| ● during transport acc. to IEC 60721 | 2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m) |
| EMC emitted interference | acc. to IEC 60947-4-2: Class A |
| Communication/ Protocol | |
| communication module is supported | |
| ● PROFINET standard | Yes |
| ● PROFINET high-feature | Yes |
| ● EtherNet/IP | Yes |
| ● Modbus RTU | Yes |
| ● Modbus TCP | Yes |
| ● PROFIBUS | Yes |
| Distributor | UNATRO ., JSC |
| UL/CSA ratings | |
| manufacturer’s article number | |
| ● of the fuse | |
| — usable for Standard Faults up to 575/600 V according to UL | Type: Class J / L, max. 2000 A; Iq = 42 kA |
| — usable for High Faults up to 575/600 V according to UL | Type: Class J / L, max. 2000 A; Iq = 100 kA |
| — usable for Standard Faults at inside-delta circuit up to 575/600 V according to UL | Type: Class J / L, max. 2000 A; Iq = 42 kA |
| — usable for High Faults at inside-delta circuit up to 575/600 V according to UL | Type: Class J / L, max. 2000 A; Iq = 100 kA |
| operating power [hp] for 3-phase motors | |
| ● at 200/208 V at 50 °C rated value | 200 hp |
| ● at 220/230 V at 50 °C rated value | 250 hp |
| ● at 460/480 V at 50 °C rated value | 500 hp |
| ● at 575/600 V at 50 °C rated value | 700 hp |
| ● at 200/208 V at inside-delta circuit at 50 °C rated value | 400 hp |
| ● at 220/230 V at inside-delta circuit at 50 °C rated value | 450 hp |
| ● at 460/480 V at inside-delta circuit at 50 °C rated value | 950 hp |
| ● at 575/600 V at inside-delta circuit at 50 °C rated value | 1 250 hp |
| contact rating of auxiliary contacts according to UL | R300-B300 |
| Safety related data | |
| protection class IP on the front acc. to IEC 60529 | IP00 |
| electromagnetic compatibility | acc. to IEC 60947-4-2 |
| ATEX | |
| certificate of suitability | |
| ● ATEX | Yes |
| ● IECEx | Yes |
| ● according to ATEX directive 2014/34/EU | BVS 18 ATEX F 003 X |
| type of protection according to ATEX directive 2014/34/EU | II (2)G [Ex eb Gb] [Ex db Gb] [Ex pxb Gb], II (2)D [Ex tb Db] [Ex pxb Db], I (M2) [Ex db Mb] |
| hardware fault tolerance acc. to IEC 61508 relating to ATEX | 0 |
| PFDavg with low demand rate acc. to IEC 61508 relating to ATEX | 0.008 |
| PFHD with high demand rate acc. to EN 62061 relating to ATEX | 0.0000005 1/h |
| Safety Integrity Level (SIL) acc. to IEC 61508 relating to ATEX | SIL1 |
| T1 value for proof test interval or service life acc. to IEC 61508 relating to ATEX | 3 y |
Khởi động mềm 200-690V 720A SIRIUS 3RW5553-6HA06 được Công ty Cổ Phần Unatro phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách đang có nhu cầu cần tư vấn, báo giá hay mua khởi động mềm Siemens 3RW5553-6HA06 thì hãy liên hệ với UNATRO.COM để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé. Xin cảm ơn!
Tài liệu bổ sung:
- Thông số kỹ thuật/ DataSheet (PDF): Download tại đây!
- Tài liệu liên quan (Manuals, Certificates, FAQs,…): Tại đây!
Đánh giá
Chưa có đánh giá nào.
