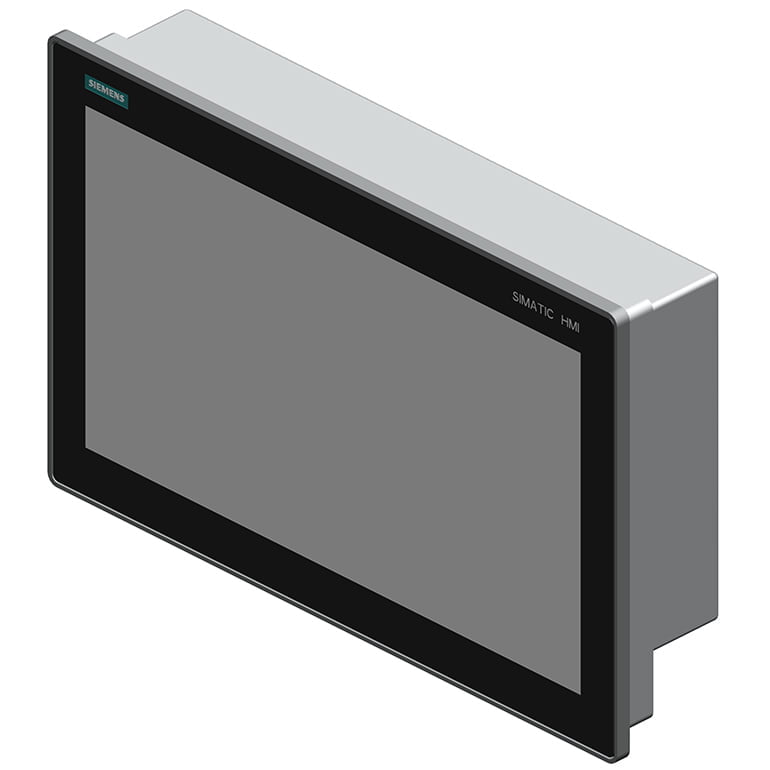

6AV7241-5JB35-1DA1 là máy tính công nghiệp (IPC) tích hợp màn hình cảm ứng đa điểm (máy tính công nghiệp All-in-One) được hãng SIEMENS sản xuất và phát triển với thương hiệu SIMATIC thuộc dòng IPC477E – Panel PC. Máy tính công nghiệp màn hình cảm ứng đa điểm SIMATIC IPC477E 15″ MultiTouch, Core i5-6442EQ, 8GB RAM, 256GB SSD; 2GB CFAST, Win10 6AV7241-5JB35-1DA1 được Công Ty Cổ Phần UNATRO phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua máy tính SIMATIC IPC477E 6AV7241-5JB35-1DA1 thì hãy liên hệ UNATRO.COM để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Xem nhanh...
Bảng tóm tắt thông số kỹ thuật IPC477E 6AV7241-5JB35-1DA1
| Mã sản phẩm | 6AV7241-5JB35-1DA1 |
| Dòng sản phẩm | SIMATIC IPC477E |
| Hãng sản xuất | SIEMENS |
| Xuất xứ | Germany (Đức) / DE |
| Màn hình | Màn hình cảm ứng đa điểm 15 inch |
| Chipset | Intel C236 / Intel H110 |
| Bộ xử lý/ CPU | Core i5-6442EQ |
| RAM | 8 GB |
| Ổ cứng | 256 GB Eco SSD; CFAST 2GB |
| Hệ điều hành | Windows 10 IoT Enterprise 2019 LTSC (64Bit) |
| Nguồn cung cấp | 100/240 V AC (tự động thay đổi phạm vi) 50 / 60 Hz |
| Kích thước (Rộng x Cao x Sâu) | 398 x 257 x 76 mm |
| Trọng lượng (ước tính) | 5 200 g |
Tổng quan về SIMATIC IPC477E 6AV7241-5JB35-1DA1
Mô tả tóm tắt bằng tiếng việt:
SIMATIC IPC 477E 15″ Multitouch (1366 x 768); Core i5-6442EQ; 3x Gigabit Ethernet (IE/PN); 8GB RAM; hai cổng RS232/RS485 không có PCIe; Windows 10 IoT Enterprise 2019 LTSC (64Bit); CFAST 2GB; 256 GB Eco SSD; 110/230V AC với Namur; không bao gồm cáp nguồn; 4 USB (phía sau), Ethernet (10/100/1000).
Mô tả tóm tắt bằng tiếng anh:
SIMATIC IPC 477E 15″ Multitouch (1366 x 768); Core i5-6442EQ; 3x Gigabit Ethernet (IE/PN); 8GB RAM; two RS232/RS485 without PCIe; Windows 10 IoT Enterprise 2019 LTSC (64Bit); CFAST 2GB, without Operating system; 256 GB Eco SSD; 110/230V AC Industrie-Netzteil with Namur; without power cord; 4 USB (back), Ethernet (10/100/1000);
Bảng chi tiết thông số kỹ thuật IPC477E 6AV7241-5JB35-1DA1
| Article number | 6AV7241-5JB35-1DA1
SIMATIC IPC477E 15″ MT (1366 x 768) |
| General information | |
| Product type designation | IPC477E |
| Display | |
| Design of display | 15″ TFT multi-touch |
| Screen diagonal | 15.6 in |
| Resolution (pixels) | |
| ● Horizontal image resolution | 1 366 pixel |
| ● Vertical image resolution | 768 pixel |
| Backlighting | |
| ● MTBF backlighting (at 25 °C) | 50 000 h |
| Control elements | |
| Input device | |
| ● Mouse, at front | No |
| Keyboard fonts | |
| ● Function keys | No |
| ● alphanumeric keyboard | No |
| Touch operation | |
| ● Design as touch screen | |
| ● Design as multi-touch screen | Yes; Projective-capacitive |
| Installation type/mounting | |
| Mounting | For horizontal and vertical mounting |
| Design | Panel PC, built-in unit |
| central design | Yes |
| distributed design | No |
| Mounting in portrait format possible | Yes |
| Supply voltage | |
| Type of supply voltage | 100/240 V AC (autorange) 50/60 Hz; optional 24 V DC |
| Line frequency | |
| ● Rated value 50 Hz | Yes |
| ● Rated value 60 Hz | Yes |
| Mains buffering | |
| ● Mains/voltage failure stored energy time | 20 ms |
| Power loss | |
| In full configuration | 24 V DC: max. 88 W, 110 … 230 V AC |
| Processor | |
| Processor type | Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB Cache, iAMT) |
| Chipset | Intel C236 / Intel H110 |
| Graphic | |
| Graphics controller | Intel HD graphics controller |
| Drives | |
| Hard disk | No |
| SSD | Yes; 256 GB Eco |
| Memory | |
| Type of memory | DDR4-2400 SO-DIMM |
| Main memory | 8 GB, ECC optional |
| Capacity of main memory, max. | 16 Gbyte |
| Data areas and their retentivity | |
| Retentive data area (incl. timers, counters, flags), max. | 512 kbyte; 128 KB can be stored in the buffer time; optional |
| Hardware configuration | |
| Slots | |
| ● free slots | 1x PCIe (slot with card retainer), 1x slot for CFAST card |
| ● Number of PCI slots | 1; Optional |
| ● Number of compact flash slots | 1; CFast |
| Interfaces | |
| Number of industrial Ethernet interfaces | 3; 3x Ethernet (RJ45) |
| USB port | 4x USB 3.0 |
| Connection for keyboard/mouse | USB / USB |
| serial interface | Without / 2x COM (RS 232 / 422 / 485), selectable in the BIOS |
| Video interfaces | |
| ● Graphics interface | 2x DisplayPort |
| Industrial Ethernet | |
| ● Industrial Ethernet interface | 3x Ethernet (RJ45) |
| — 100 Mbps | Yes |
| — 1000 Mbps | Yes |
| Interrupts/diagnostics/status information | |
| Bus diagnostics | Yes |
| Integrated Functions | |
| Monitoring functions | |
| ● Temperature monitoring | Yes |
| ● Watchdog | Yes |
| ● Fan | No |
| ● Monitoring function via network | Optional |
| EMC | |
| Interference immunity against discharge of static electricity | |
| ● Interference immunity against discharge of static electricity | ±6 kV contact discharge acc. to IEC 61000-4-2; ±8 kV air discharge acc. to IEC 61000-4-2 |
| Interference immunity against high-frequency electromagnetic fields | |
| ● Interference immunity against high frequency radiation | 10 V/m, 80 … 2 000 MHz, 80 % AM acc. to IEC 61000-4-3; 3 V/m, 2 … 2.7 GHz; 10 V, 10 kHz … 80 MHz acc. to IEC 61000-4-6 |
| Interference immunity to cable-borne interference | |
| ● Interference immunity on supply cables | ±2 kV acc. to IEC 61000-4-4, burst; ±1 kV acc. to IEC 61000-4-5, surge symmetric; ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| ● Interference immunity on signal cables >30m | ±2 kV acc. to IEC 61000-4-5, surge, length > 30 m |
| ● Interference immunity on signal cables < 30m | ±1 kV acc. to IEC 61000-4-4; burst; length < 3 m; ±2 kV acc. to IEC 61000-4-4; burst; length > 3 m |
| Interference immunity against voltage surge | |
| ● asymmetric interference | ±2 kV acc. to IEC 61000-4-5, surge asymmetric |
| ● symmetric interference | ±1 kV acc. to IEC 61000-4-5, surge symmetric |
| Interference immunity to magnetic fields | |
| ● Interference immunity to magnetic fields at 50 Hz | 100 A/m; to IEC 61000-4-8 |
| Emission of conducted and non-conducted interference | |
| ● Interference emission via line/AC current cables | EN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A |
| Degree and class of protection | |
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| Standards, approvals, certificates | |
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| ● UL 508 | Yes |
| cULus | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| EAC (formerly Gost-R) | Yes |
| FCC | Yes |
| EMC | CE, EN 61000-6-4; CISPR 22:2004 Class A; FCC Class A |
| Use in hazardous areas | |
| ● ATEX Zone 2 | Yes; Optional, only with Multitouch |
| ● IECEx Zone 2 | Yes; Optional, only with Multitouch |
| ● cULus Class I Zone 2, Division 2 | Yes; Optional, only with Multitouch |
| Marine approval | |
| ● Germanischer Lloyd (GL) | Yes |
| ● American Bureau of Shipping (ABS) | Yes |
| ● Bureau Veritas (BV) | Yes |
| ● Det Norske Veritas (DNV) | Yes |
| ● Korean Register of Shipping (KRS) | Yes |
| ● Lloyds Register of Shipping (LRS) | Yes |
| ● Nippon Kaiji Kyokai (Class NK) | Yes |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● Ambient temperature during operation | 0 °C to 45 °C |
| Ambient temperature during storage/transportation | |
| ● min. | -20 °C |
| ● max. | 60 °C |
| Relative humidity | |
| ● Relative humidity | Tested according to IEC 60068-2-78, IEC 60068-2-30: 5% to 80% at 25 °C (no condensation) |
| Vibrations | |
| ● Vibration resistance during operation acc. to IEC 60068-2-6 | IEC 60068-2-6; 5 Hz to 9 Hz: 3.5 mm; 9 Hz to 500 Hz: 9.8 m/s² (with SSD or CFast); 10 Hz to 58 Hz: 0.0375 mm; 58 Hz to 200 Hz: 4.9 m/s² (hard disk) |
| Shock testing | |
| ● Shock load during operation | IEC 60068-2-27; 150 m/s², 11 ms (without hard disk); 50 m/s², 30 ms (with hard disk) |
| Operating systems | |
| pre-installed operating system | Windows 10 IoT Enterprise 2019 LTSC (64Bit) |
| without operating system | No |
| Software | |
| SIMATIC Software | Optionally with pre-installed SIMATIC WinCC RT Advanced / Software Controller CPU 1500S software bundle |
| Distributor | UNATRO |
| Dimensions | |
| Width of the housing front | 398 mm |
| Height of housing front | 257 mm |
| Mounting cutout, width | 382 mm |
| Mounting cutout, height | 241 mm |
| Overall depth | 76 mm |
| ● additional mounting depth (optical drive) | |
| Weights | |
| Weight, approx. | 5.2 kg |
