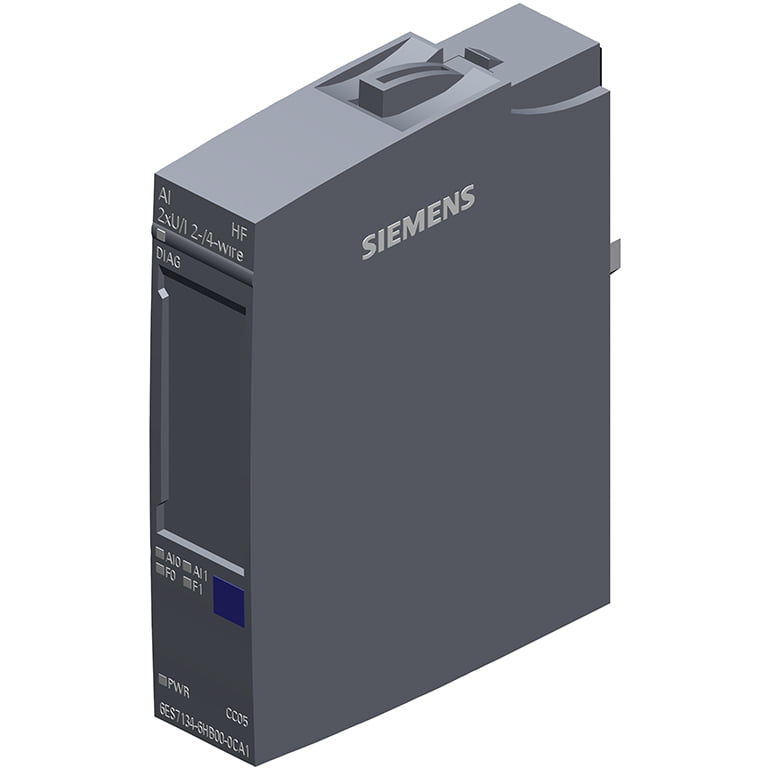

6ES7134-6HB00-0CA1 là mô-đun mở rộng đầu vào tương tự (analog input module) được hãng SIEMENS sản xuất và phát triển với thương hiệu SIMATIC thuộc dòng ET 200SP. Mô-đun mở rộng đầu vào tương tự SIMATIC ET 200SP, AI 2x U/I 2-/4-wire High Feature 6ES7134-6HB00-0CA1 được Công ty Cổ Phần UNATRO phát triển và phân phối rộng rãi trên thị trường Việt Nam. Nếu quý khách hàng đang có nhu cầu cần tư vấn, báo giá hay mua AI 2xU/I 2-/4-wire HF 6ES7134-6HB00-0CA1 thì hãy liên hệ UNATRO.COM để được hỗ trợ một cách tận tâm, nhanh chóng và hiệu quả nhé.
Mô tả tóm tắt bằng tiếng Việt: Mô-đun mở rộng đầu vào tương tự SIMATIC ET 200SP, AI 2x U/I 2-/4-wire High Feature, phù hợp cho BU loại A0, A1; mã màu CC05, chuẩn đoán kênh, 16 bit, +/-0.1%.
Mô tả tóm tắt bằng tiếng Anh: SIMATIC ET 200SP, Analog input module, AI 2x U/I 2-/4-wire High Feature, suitable for BU type A0, A1, Color code CC05, channel diagnostics, 16 bit, +/-0.1%.
Xem nhanh...
Bảng tóm tắt thông số kỹ thuật 6ES7134-6HB00-0CA1
| Mã sản phẩm | 6ES7134-6HB00-0CA1 |
| Dòng sản phẩm | SIMATIC ET 200SP, AI 2xU/I 2-/4-wire HF |
| Hãng sản xuất | SIEMENS |
| Xuất xứ | Germany (Đức) / DE |
| Số lượng đầu vào analog | AI 2x U/I 2-/4-wire |
| Nguồn cung cấp | 24 V DC (19.2 – 28.8 V DC) |
| Kích thước (Rộng x Cao x Sâu) | 15 x 73 x 58 mm |
| Trọng lượng | 32 g |
Bảng chi tiết thông số kỹ thuật 6ES7134-6HB00-0CA1
| Article number | 6ES7134-6HB00-0CA1
ET 200SP AI 2 X U/I 2-, 4-Wire HF |
| General information | |
| Product type designation | AI 2xU/I 2-/4-wire HF |
| HW functional status | From FS06 |
| Firmware version | |
| ● FW update possible | Yes |
| usable BaseUnits | BU type A0, A1 |
| Color code for module-specific color identification plate | CC03 |
| Product function | |
| ● I&M data | Yes; I&M0 to I&M3 |
| ● Isochronous mode | Yes |
| ● Measuring range scalable | No |
| Engineering with | |
| ● STEP 7 TIA Portal configurable/ integrated from version | V13 |
| ● STEP 7 configurable/ integrated from version | V5.5 / – |
| ● PCS 7 configurable/ integrated from version | V8.1 SP1 |
| ● PROFIBUS from GSD version/GSD revision | One GSD file each, Revision 3 and 5 and higher |
| ● PROFINET from GSD version/GSD revision | GSDML V2.3 |
| Operating mode | |
| ● Oversampling | No |
| ● MSI | Yes |
| CiR – Configuration in RUN | |
| Reparameterization possible in RUN | Yes |
| Calibration possible in RUN | Yes |
| Supply voltage | |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
| Reverse polarity protection | Yes |
| Input current | |
| Current consumption (rated value) | 39 mA; without sensor supply |
| Encoder supply | |
| 24 V encoder supply | |
| ● 24 V | Yes |
| ● Short-circuit protection | Yes |
| ● Output current, max. | 20 mA; max. 50 mA per channel for a duration < 10 s (two-wire) |
| Additional 24 V encoder supply | |
| ● Short-circuit protection | Yes; channel by channel |
| ● Output current, max. | 100 mA; max. 150 mA for a duration of < 10 s (four-wire) |
| Power loss | |
| Power loss, typ. | 0.95 W; without sensor supply |
| Address area | |
| Address space per module | |
| ● Address space per module, max. | 4 byte; + 4 byte for scaling of measured values, + 1 byte for QI information |
| Hardware configuration | |
| Automatic encoding | Yes |
| ● Mechanical coding element | Yes |
| ● Type of mechanical coding element | Type A |
| Selection of BaseUnit for connection variants | |
| ● 2-wire connection | BU type A0, A1 |
| ● 4-wire connection | BU type A0, A1 |
| Analog inputs | |
| Number of analog inputs | 2; Differential inputs |
| ● For current measurement | 2 |
| ● For voltage measurement | 2 |
| permissible input voltage for voltage input (destruction limit), max. | 30 V |
| permissible input current for current input (destruction limit), max. | 50 mA |
| Analog input with oversampling | No |
| Standardization of measured values | Yes |
| Input ranges (rated values), voltages | |
| ● 0 to +10 V | Yes; 15 bit |
| — Input resistance (0 to 10 V) | 75 kΩ |
| ● 1 V to 5 V | Yes; 15 bit |
| — Input resistance (1 V to 5 V) | 75 kΩ |
| ● -10 V to +10 V | Yes; 16 bit incl. sign |
| — Input resistance (-10 V to +10 V) | 75 kΩ |
| ● -5 V to +5 V | Yes; 16 bit incl. sign |
| — Input resistance (-5 V to +5 V) | 75 kΩ |
| Input ranges (rated values), currents | |
| ● 0 to 20 mA | Yes; 15 bit |
| — Input resistance (0 to 20 mA) | 130 Ω |
| ● -20 mA to +20 mA | Yes; 16 bit incl. sign |
| — Input resistance (-20 mA to +20 mA) | 130 Ω |
| ● 4 mA to 20 mA | Yes; 15 bit |
| — Input resistance (4 mA to 20 mA) | 130 Ω |
| Cable length | |
| ● shielded, max. | 1 000 m; 200 m for voltage measurement |
| Analog value generation for the inputs | |
| Measurement principle | Sigma Delta |
| Integration and conversion time/resolution per channel | |
| ● Resolution with overrange (bit including sign), max. | 16 bit |
| ● Integration time, parameterizable | Yes |
| ● Integration time (ms) | 67.5 / 22.5 / 18.75 / 10 / 5 / 2.5 / 1.25 / 0.625 ms |
| ● Basic conversion time, including integration time (ms) | 68.03 / 22.83 / 19.03 / 10.28 / 5.23 / 2.68 / 1.43 / 0.730 ms |
| ● Interference voltage suppression for interference frequency f1 in Hz | 16.6 / 50 / 60 / 300 / 600 / 1 200 / 2 400 / 4 800 |
| ● Conversion time (per channel) | 68.2 / 23 / 19.2 / 10.45 / 5.40 / 2.85 / 1.6 / 0.9 ms |
| ● Basic execution time of the module (all channels released) | 1 ms |
| Smoothing of measured values | |
| ● Number of smoothing levels | 6; none; 2-/4-/8-/16-/32-fold |
| ● parameterizable | Yes |
| Encoder | |
| Connection of signal encoders | |
| ● for voltage measurement | Yes |
| ● for current measurement as 2-wire transducer | Yes |
| — Burden of 2-wire transmitter, max. | 650 Ω |
| ● for current measurement as 4-wire transducer | Yes |
| Errors/accuracies | |
| Linearity error (relative to input range), (+/-) | 0.01 % |
| Temperature error (relative to input range), (+/-) | 0.003 %/K |
| Crosstalk between the inputs, min. | -50 dB |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.01 % |
| Operational error limit in overall temperature range | |
| ● Voltage, relative to input range, (+/-) | 0.1 % |
| ● Current, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C) | |
| ● Voltage, relative to input range, (+/-) | 0.05 %; 0.1 % at SFU 4.8 kHz |
| ● Current, relative to input range, (+/-) | 0.05 %; 0.1 % at SFU 4.8 kHz |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | |
| ● Common mode voltage, max. | 35 V |
| ● Common mode interference, min. | 90 dB |
| Isochronous mode | |
| Filtering and processing time (TCI), min. | 800 µs |
| Bus cycle time (TDP), min. | 1 ms |
| Jitter, max. | 5 µs |
| Interrupts/diagnostics/status information | |
| Diagnostics function | Yes |
| Alarms | |
| ● Diagnostic alarm | Yes |
| ● Limit value alarm | Yes; two upper and two lower limit values in each case |
| Diagnoses | |
| ● Monitoring the supply voltage | Yes |
| ● Wire-break | Yes; Measuring range 4 to 20 mA only |
| ● Short-circuit | Yes; channel-by-channel, at 1 to 5 V or for short-circuit in encoder supply |
| ● Group error | Yes |
| ● Overflow/underflow | Yes |
| Diagnostics indication LED | |
| ● Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
| ● Channel status display | Yes; green LED |
| ● for channel diagnostics | Yes; red LED |
| ● for module diagnostics | Yes; green/red DIAG LED |
| Potential separation | |
| Potential separation channels | |
| ● between the channels | Yes |
| ● between the channels and backplane bus | Yes |
| ● between the channels and the power supply of the electronics | Yes |
| Isolation | |
| Isolation tested with | 707 V DC (type test) |
| Ambient conditions | |
| Ambient temperature during operation | |
| ● horizontal installation, min. | -30 °C; < 0 °C as of FS06 |
| ● horizontal installation, max. | 60 °C |
| ● vertical installation, min. | -30 °C; < 0 °C as of FS06 |
| ● vertical installation, max. | 50 °C |
| Altitude during operation relating to sea level | |
| ● Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Distributor | UNATRO ., JSC |
| Dimensions | |
| Width | 15 mm |
| Height | 73 mm |
| Depth | 58 mm |
| Weights | |
| Weight, approx. | 32 g |
